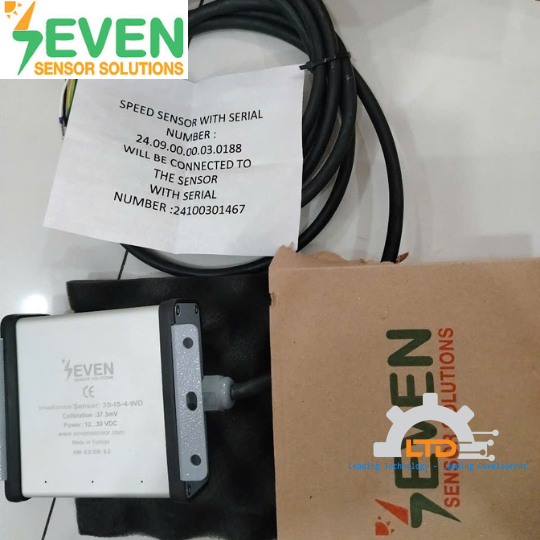

Irradiance Sensors Class A 3S-IS Argesim SEVEN Việt Nam
LTD Automation tự hào là đại lý phân phối sản phẩm 3S-IS hãng Argesim SEVEN uy tín tại Việt Nam
==>Tại sao chọn mua 3S-IS hãng Argesim SEVEN tại LTD Automation:
- Uy tín tạo nên thương hiệu
- Sản phẩm chính hãng 100%
- Hỗ trợ tư vấn - chính sách hậu mãi
- Sản phẩm được bảo tối thiểu 12 tháng
Liên hệ tư vấn:
- 0912 300 549
- sale02@ltdautomation.com.vn
TECHNICAL DATA
| Item Code | 3S-IS |
| Reference Cell | Monocrystalline Silicon (31 mm x 31 mm) |
| Current Shunt | High precision shunt resistor directly soldered to the terminals of the cell |
| Irradiance Range | 0 – 1600 W/m² |
| Uncertainty | ≤1,2%, as per IEC61724-1 standard Class A |
| Resolution | 0.1 W/m² ≤ 1W/m² as per IEC61724-1 standard Class A |
| Response Time | 1 sec. less than 3 sec; as per IEC61724-1 standard Class A |
| Drift | Very small drift of <0.3%/ year |
| Field of View | Larger than 160° as per IEC61724-1 standard Class A |
| Tilt-Azimuthal Angle | 0°- 0° , ≤ 1°; as per IEC61724-1 standard Class A |
| Output Rate | 1/s |
| Data Output | RS485 up to 38400 Baud |
| Communication Protocol | Modbus RTU |
| Power Supply | 12 to 30 V DC |
| Power Consumption | 30 mA max @24 VDC |
| Electrical Connection | 3 m LIYYC11Y PUR Cable, UV and Weather Resistant |
| Galvanic Isolation | 1000 V between power supply and RS485 bus |
| Cell Temperature Sensor Type | PT1000 Class A as per EN 60751 |
| Operating Temperature Range | -40°C to +85°C |
| Operating Humidity Range | 0 to 100 % |
| Box Dimensions | 140 mm x 110 mm x 42 mm (W x L x H) |
| Weight | 0.3 kg |
| IP Rating | IP54 (IP65, IP68 options) |
| Sensor Housing Material | Aluminum |
| Compliant Standard | IEC 61724-1:2021 and IEC 60904 |
| Calibration | Each sensor is calibrated under Class AAA Sun Simulator as per IEC 60904-2 and IEC 60904-4 by using a reference cell calibrated by ISFH-Germany |
| Test | The test is carried under natural sunlight by using a calibrated reference cell from Fraunhofer ISE, Germany |
