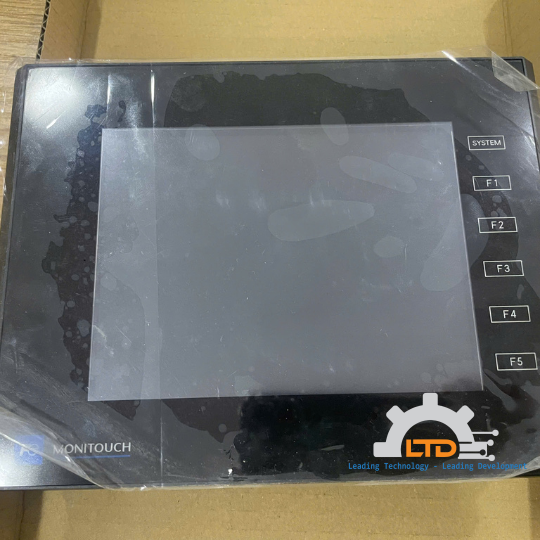

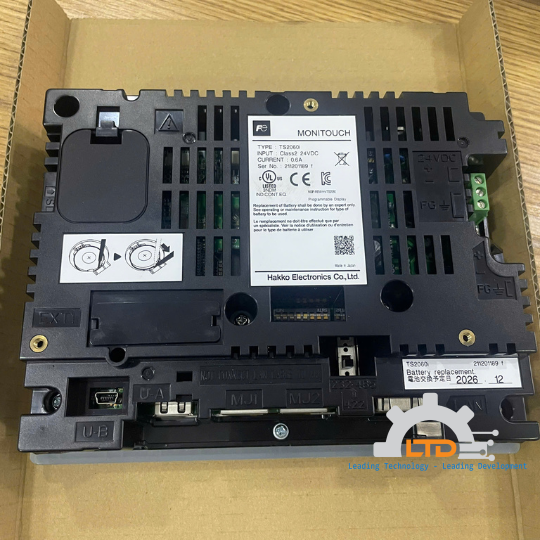

Màn hình HMI Hakko Fuji TS2060i

0914 552 680

Email: admin@ltdautomation.com.vn

Màn hình HMI Hakko Fuji TS2060i

Lượt xem:
15
Nhà sản xuất:
Hakko Fuji
Model:
TS2060i
Giá:
21.000.000đ

Hàng mới 100%

Tình trạng: Có sẵn

Tư vấn ngay: 0914 237 179 - sale11@ltdautomation.com.vn

Thông tin sản phẩm
Bình luận

Basic specifications

		TS2060
Power supply	Rated voltage	24VDC
	Permissible range of voltage	24VDC ± 10%
	Permissible momentary power failure	Within 1ms
	Demand (maximum rating)	13W or less
Insulation resistance		Between DC external terminal and FG: 500VDC 10MΩ or more
Physical environment	Ambient temperature	0 degC ~ +50 degC *1
	Ambient humidity	85%RH or less (without dew condensation) *1
	Operation altitude	2,000 meters or lower
	Atmosphere	Not to be exposed to corrosive gas, or conductive dust
	Storage temperature	-10 ~ 60 degC *1
	Storage humidity	85%RH or less (without dew condensation) *1
	Overvoltage category	Category II
	Contamination level	Level 2
Mechanical operating conditions	Resistance to oscillation	Complies with JIS B 3502 (IEC61131-2) Vibration frequency: 5-9Hz, pulsating with:3.5mm, 9-150Hz, Acceleration: 9.8m/s2(1G),X,Y,Z: 3 directions (10 times each)
Mechanical operating conditions	Resistance to shock	Complies with JIS B 3502 (IEC61131-2) Peak acceleration: 147m/s2(15G), X,Y,Z: 3 directions, three times each (18 times in total)
Electric operating conditions	Resistance to noise	Noise voltage: 1,000Vp-p, pulse width: 1μs, pulse rise time: 1ns
Electric operating conditions	Resistance to static discharge	Complies with IEC61000-4-2, contact: 6kV, air: 8kV
Installation conditions	Grounding	Grounding resistance: Less than 100Ω, FG/SG separation
	Protection Structure	Front panel: Complies with IP65 (when waterproof gasket is installed) Rear cover: Complies with IP20
	Installation method	Panel mounting
	Cooling system	Natural air cooling
	Dimensions WHD(mm)	182.5 x 138.8 x 45.8mm
	Panel cutout (mm)	174.0(-0,+0.5) x 131.0(-0,+0.5) mm (same as V806/V606e)
Case color		Black
Battery		Coin type lithium battery, lifetime: 5 years (ambient temperature 25 degC)
Material		PC

*1: Wet-bulb temperature should be 39°C or lower to prevent malfunction.

Performance specifications

		TS2060	TS2060i
Screen program memory （FROM）		2.5MB	10.5MB
Backup memory （SRAM）		128KB	512KB
Stroke fonts		N/A	Supported
Display	Display device	TFT color
	Resolution	320 x 240
	Display size	5.7" (QVGA)
	Colors	65,536 colors (selection of 32K/256/128/monochrome available with software configuration.)
	Backlight	LED
	Backlight lifetime	50,000 hours
Touch switch	Type	Analog resistance film
Function switches	Number of the function switches	6
External interface	D-Sub 9-pin *2	N/A	RS-232C/ RS-422/485, Asynchronous type, Data length: 7, 8 bits, Parity: even, odd, none, Stop bit: 1, 2 bits, Baud rate: 4800, 9600, Stop bit: 1, 2 bits, Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200 bps
	Modular 8-pin（MJ1/MJ2）	RS-232C/ RS-422 (4-wire) 3, RS-485 (two-wire), Asynchronous type, Data length: 7,8 bits, Parity: even, odd, none, Stop bit: 1, 2 bits, Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200, 187500 bps 4
	SD card	N/A	1 slot, as standard equipment (SD/SDHC card)
	Ethernet	N/A	1CH, 100Mbps/10Mbps
	USB	Type mini-B(Ver.2.0)	Type A、Type mini-B(Ver.2.0)
	Communication unit	N/A	CUR-xx supported
Clock	Backup period	5 years (Ambient temperature 25 degC)
Clock	Calendar accuracy	W/ power supply: gap ±210 sec. per month (Ambient temperature 25 degC) W/o power supply: gap ±90 sec. per month (ambient temperature 25 degC, when battery backup is used.)
Standards	CE	EN61000-6-2, EN61000-6-4
	UL/cUL	UL61010-1, UL61010-2-201
	KC	Compliant

*2: Available only when DUR-00 is attached to TS2060i.
*3: Only MJ2 supports 4-wire system.
*4: 187500bps is available only when connected with SIEMENS MPI/PPI . MPI/PPI connection is supported only with MJ2.
