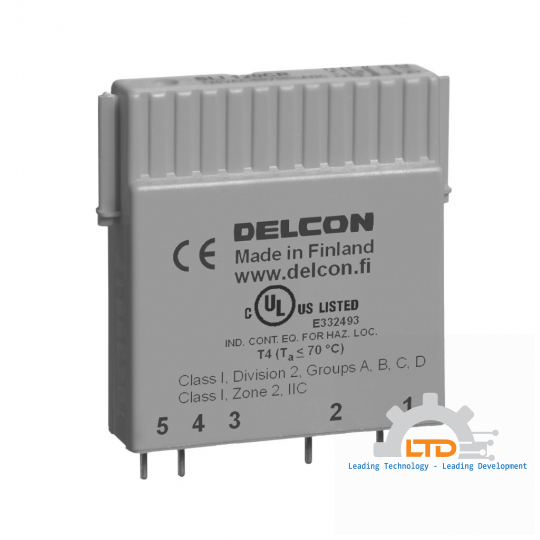

EXOA120TH | 100-125 V | AC | AC | Ex Approved | Hazardous locations
Tư vấn ngay: 0914 237 179 - sale11@ltdautomation.com.vn
Datasheet
3D files
Qualifications
Main data
| Nominal load voltage | 240 V AC |
| Nominal input voltage | 120 V AC |
| Rated load current | 1 A |
Control circuit
| Switch-on voltage | 80 V AC |
| Switch-off voltage | 60 V AC |
| Power consumption | 600 mW |
Load circuit
| Load current range | 1 A |
| Load voltage range | 240 V AC |
| Inrush current | 90 A, 20 ms |
| Leakage current | 1,5 mA |
| Voltage drop | 1 V |
| dV/dt of the triac | 200 V/μs |
| Switch-on time | 20 ms |
| Switch-off time | 50 ms |
| Load power factor, cos 𝝓 | 0...1 |
Insulation
| Insulation method | Pulse transformer (an unique feature for Delcon relay compared to opto) |
| Test voltage input/output | 4600 V ACrms / 1 s |
| Overvoltage category | III |
| Pollution degree | 2 |
| Air/creepage distance I/O | 8 mm |
General data
| Conductor size, screw terminal | 2,5 mm2 |
| Conductor size, spring terminal | 0,75 - 2,5 mm2 |
| Operating temperature | -25 °C to +70 °C |
| Weight | 40 g |
| Housing material flammability | UL 94 V-0 |
| Package size | 10, 50 and 100 |
