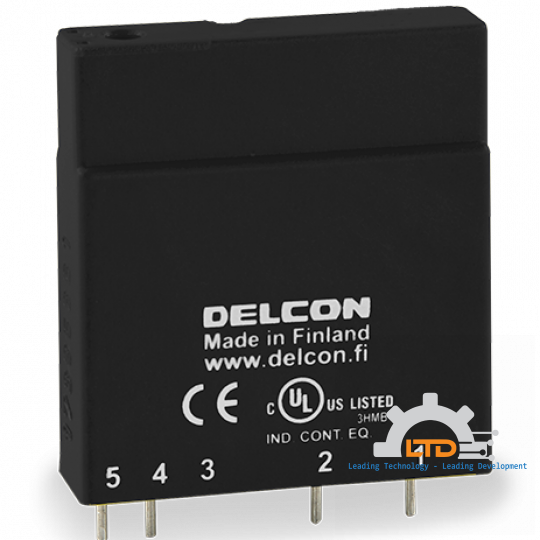

SLO24TRA | 24 V | AC | Automation industry | DC | Standard
Tư vấn ngay: 0914 237 179 - sale11@ltdautomation.com.vn
Datasheet
3D files
Qualifications
Main data
| Nominal load voltage | 240/415 V AC |
| Nominal input voltage | 24 V DC |
| Rated load current | 2,5 A |
| MTTF (MIL-HDBK-217F) | 422 years |
| Warranty | 10 years |
Control circuit
| Input voltage max. | 32 V DC |
| Switch-on voltage | 16 V DC |
| Switch-off voltage | 14 V DC |
| Power consumption | 360 mW |
| Input impedance | 1,4 kΩ |
Load circuit
| Load current range | 0 - 2,5 A, no minimum load required |
| Load voltage range | 0 - 460 V AC, no minimum load required |
| Inrush current | 65 A, 20 ms |
| Leakage current | 50 𝜇A |
| Voltage drop | 1 V |
| dV/dt of the triac | 4000 V/μs |
| Switch-on time | 0,5 ms |
| Switch-off time | 11 ms |
| Load power factor, cos 𝝓 | 0...1 |
Insulation
| Insulation method | Pulse transformer (an unique feature for Delcon relay compared to opto) |
| Test voltage input/output | 4600 V ACrms / 1 s |
| Overvoltage category | III |
| Pollution degree | 2 |
| Air/creepage distance I/O | 8 mm |
General data
| Conductor size, screw terminal | 2,5 mm2 |
| Conductor size, spring terminal | 0,75 - 2,5 mm2 |
| Operating temperature | -25 °C to +70 °C |
| Weight | 40 g |
| Housing material flammability | UL 94 V-0 |
| Package size | 10, 50 and 100 |
