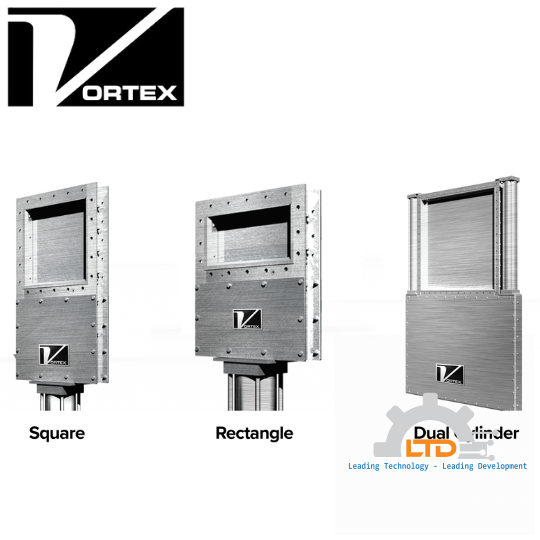

The Vortex® Roller Gate™ is the best choice for handling dry material in gravity flow or low-pressure applications. This gate is available in a wide variety of configurations including rectangular sizes and customer specific hole patterns. It has live-loaded seals that extend the service life by compensating for wear. These seals provide an excellent material seal across the gate and to atmosphere. They can also be replaced while the valve is in-line. Similar slide gates have seals made of soft packing, rubber or felt, which rapidly erode away allowing product leakage.

Ideal application: Installations above or below gravity-fed hoppers/silos, mixers, and augers/screw conveyors. It is also an excellent choice for application as an air shut-off gate/damper valve in vacuum dust collection systems. Custom sizes are available to accommodate any combination of gate stroke or width.

100% USA origin    Vortex    SA300V1-WS1

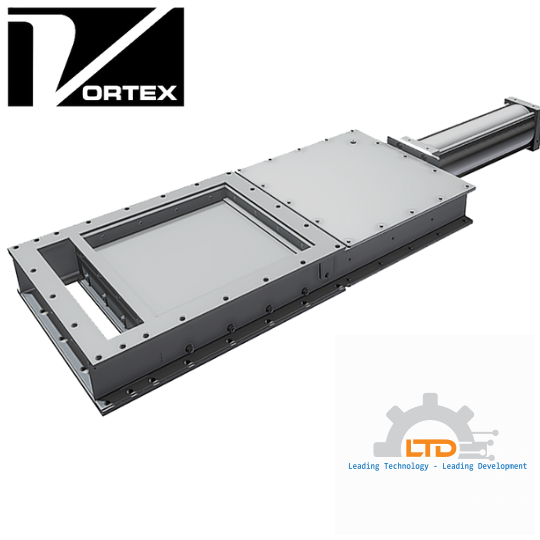

Vortex Model No. SA300V1-WS1, 300MM Roller Gate Valve. Valve body is 6061-T6 aluminum with a 304 stainless steel blade and seal retainers. Material contact is 304 stainless steel and polymer. Milled access slots in side frame allows removal and replacement of bonnet seals while the gate valve remains in service. Valve body is modified to accept proximity switches (plugged if indication switches are not utilized).
• Oversized double acting air cylinder actuator equipped with a magno-piston for use with magnetic reed position indication switches.
• Valve is rated for 180˚F(82˚C) maximum continuous service. PET side seals and upper and lower bonnet seals are live loaded and silicone rubber backed. Valve also includes camadjustable slide rollers and PET roller spacers. End seal and bonnet blade guides are UHMW-PE.
• (WS1) - Valve blade is electropolished to handle sticky materials.
