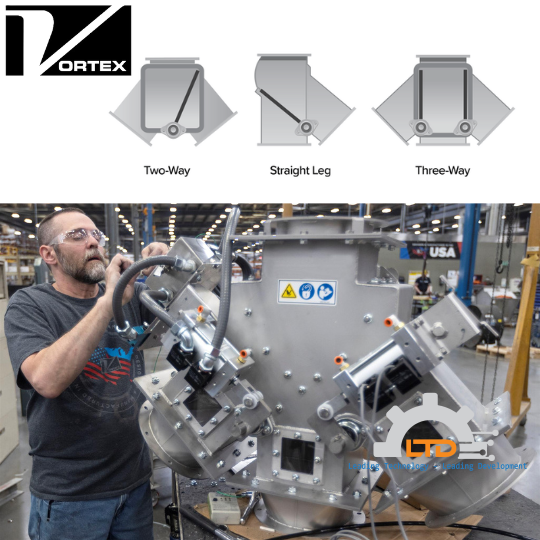

Seal Tite‍ Diverter VORTEX GLOBAL, Van chia hướng Seal Tite‍ Diverter VORTEX GLOBAL Việt Nam, LTĐ Đại lý phân phối VORTEX GLOBAL tại VietNam

Key Features

• Recessed blade(s) to protect the blade(s) & seal(s) from abrasion

• Removable access panel for in-line inspection and maintenance

• Live loaded, wear compensating shaft seal(s) protect the blade shaft(s) from wear and prevent material leakage into the opposite chute(s)

• Lightweight construction for easy installation

• Constructed from specialized metals and polymers for application-specific durability

• Unobstructed chutes for unrestricted material movement

• No pinch points or exposed moving point for safety

• No internal cavities to prevent wedging, lodging & spoilage

• Flange and outlet chute angle options to match up with pre-existing footprints

***Model No.  ZXX

• Conveyance Type Gravity flow only
• Materials Handled Non-abrasive to moderately abrasive powders, pellets and granules. Modifications available for handling corrosive materials and/or for wash-down.
• Standard Sizes 4 – 30 in | 100 – 760 mm
• Contact us for custom sizes Inlet & Outlets
• Available in square or rectangular sizes. Round transition options are available
• Overall Height 15 x 15 in – 65 x 55 in 385 x 385 mm – 1,640 x 1,370 mm
• Weight 40 – 1,265 lb | 20 – 575 kg
• Outlet Chute Angle Options 30° or 45° from center
• Contact us for custom angles Flange Options
• Standard flange, ANSI #125/150, DIN PN10 Custom flanges are available
• Material Temperatures 180° F | 80° C for standard gate, with modifications that allow up to 400° F | 205° C
• Body/Frame Options 304 or 316L stainless steel, carbon steel
• Material Contact Options 304 or 316L stainless steel, carbon steel
• Blade Seal Options Buna-N nitrile rubber, silicone rubber, polyurethane, EPDM rubber
• Shaft Seal Options PET, 25% glass-filled PTFE
• Load Seal Construction Silicone rubber
• Drive/Actuation Double-acting air cylinder, hand lever, chain wheel, electric actuator
• Position Confirmation Magnetic reed, proximity or mechanical limit switches
• Other Options Spin knobs
• Compliance ATEX Zone 20 (internal), ATEX Zone 21 (external), FDA
