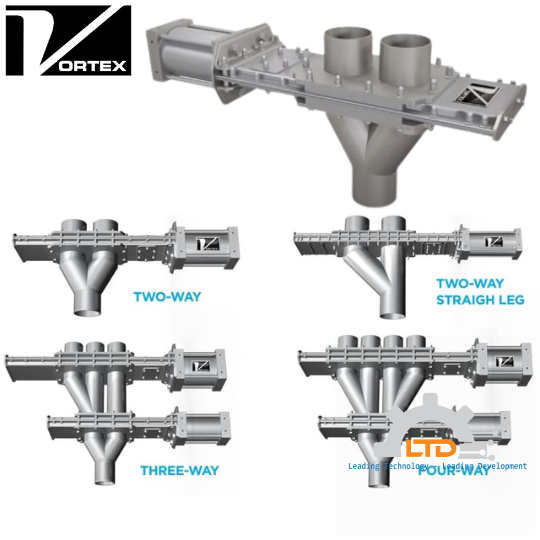

Wye Line Diverter VORTEX GLOBAL, Van chia hướng Wye Line Diverter VORTEX GLOBAL Việt Nam, LTĐ Đại lý phân phối VORTEX GLOBAL tại VietNam

**Key Features

• Live Loaded, wear compensating hard polymer pressure plate seals
• Shimming system allows for in-line maintenance
• Machined, full-bore orifice for unobstructed material flow & to maintain convey line pressures
• Can be shifted on a flowing column of materials
• Positive seal of materials & dusts across the closed port(s) and to atmosphere
• Mechanically self-cleans its seals with each actuation
• No pinch points or exposed moving point for safety
• No internal cavities to prevent wedging, lodging & spoilage
• Narrow profile for limited space applications

***Model No. DRXX

• Conveyance Type Gravity flow & dilute phase pneumatic conveying applications. Can handle differential pressures up to 15 psig | 1 barg | 0.1 MPa, depending on gate size. Can be used in pressure or vacuum systems.
• Materials Handled Non-abrasive to moderately abrasive powders, pellets and granules. Modifications available for handling corrosive materials and/or for wash-down.
• Standard Sizes 2 – 12 in | 50 – 305 mm ID & OD diameters are available. Also available in schedule 10, 20 or 40 pipe sizes.
• Inlet & Outlets Available in round sizes.
• Overall Height 11 – 43 in | 280 – 1,085 mm
• Weight 20 – 450 lb | 10 – 205 kg
• Outlet Angle Options 30° or 45° from center Contact us for custom angles
• Connection Options Compression couplings, ANSI #125/150
• Material Temperatures 180° F | 80° C for standard gate, with modifications that allow up to 400° F | 205° C
• Body/Frame Options Aluminum, 304 or 316L stainless steel, carbon steel
• Weldment Options Aluminum, 304 or 316L stainless steel, carbon steel
